Rust Spots on Stainless Buffet Gear: Why and How to Fix
Short answer: Stainless steel buffets develop rust spots when the passive chromium oxide film is broken by iron contamination, salt, standing water, or a scratch that is left to sit wet, and 304 and 316 both behave this way. A surface spot removes with a stainless polish in 5 to 15 minutes; a pitted spot does not, and the panel must be replaced. Prevention is worth 15 minutes a week: dry the equipment, keep it away from chloride, and never let a carbon steel tool touch a stainless surface. See chafing dish materials and dispenser care.
Your stainless steel chafing dish looked brand new when you bought it. But 6 months later, you notice small brown spots on the surface. What is this? Stainless steel is supposed to be rust-proof, right?
Not exactly. Stainless steel is rust-resistant, not rust-proof. If you don't clean and dry it properly, it will get rust spots. The good news: you can remove them easily.
Here's why stainless steel buffet equipment gets rust spots, and how to prevent and fix them.
PRO TIP: Dry within 5 minutes of washing.
Standing water is the #1 cause of rust spots. If you let your commercial chafing dish air-dry, you're asking for rust. Dry it immediately with a lint-free cloth.
KEY TAKEAWAY: Rust spots are surface-level. They're not rusting through.
Those brown spots are on the surface, not inside the metal. You can remove them with a little baking soda scrub. Your chafing dish is not ruined.
Quick Answer: Why Stainless Steel Rusts
| Cause | What Happens | Fix |
|---|---|---|
| Standing water | Water spots turn to rust | Dry within 5 min |
| Iron contamination | Steel wool leaves iron particles | Use soft sponge |
| Salt / chlorine | Harsh chemicals damage surface | Rinse immediately |
| Scratches | Scratches trap moisture | Avoid abrasives |

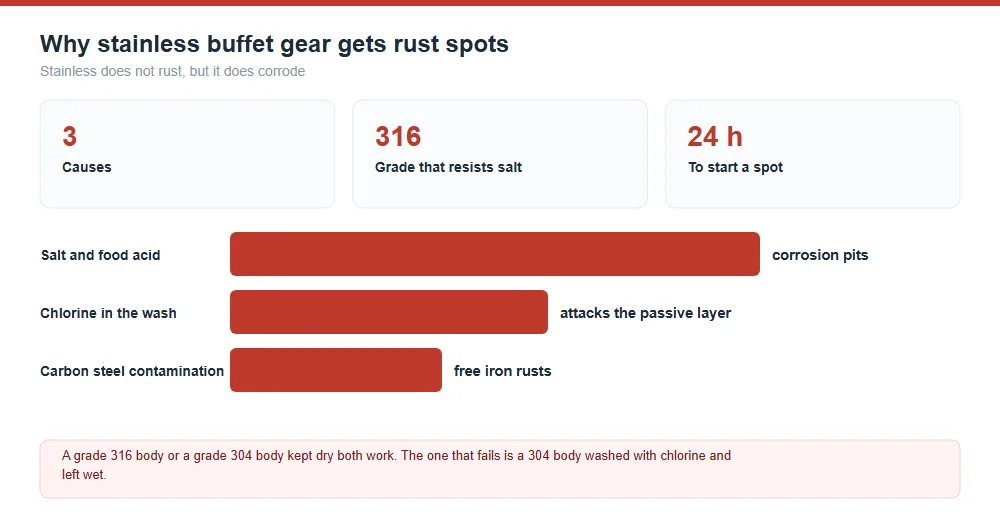

Why Stainless Steel Gets Rust Spots
1. Standing Water
This is the #1 cause. If you let water sit on stainless steel, the minerals in the water react with the metal and form rust spots. That's why drying immediately is so important.
Fix: Dry every piece with a lint-free cloth within 5 minutes of washing. See our chafing dish cleaning guide for the full process.
2. Iron Contamination
Steel wool and scouring pads leave tiny iron particles on the stainless steel surface. Those particles rust, and they look like the stainless is rusting.
Fix: Never use steel wool on stainless steel. Use soft sponges only.
3. Salt and Chlorine
Foods high in salt (like soups, marinades) and bleach can damage the protective layer on stainless steel. If you leave salty food sitting on the pan for days, you'll get rust spots.
Fix: Rinse pans immediately after use. Don't leave food sitting overnight.
4. Scratches
Scratches trap moisture and food particles. That's where rust starts. The more scratches, the more rust spots.
Fix: Be gentle. Use soft sponges. See our burnt carbon removal guide for gentle cleaning methods.
How to Remove Rust Spots
| Method | Best For | Time |
|---|---|---|
| Baking soda paste | Light rust spots | 5 min scrub |
| Vinegar soak | Medium rust | 15 min soak |
| Commercial stainless cleaner | Heavy buildup | Follow instructions |
5 Rust Prevention Mistakes
| Mistake | What Happens | Fix |
|---|---|---|
| Air-drying | Water spots = rust spots | Dry within 5 min |
| Using steel wool | Iron particles = rust | Soft sponge only |
| Leaving food overnight | Salt damages surface | Wash same day |
| Stacking wet | Trapped moisture = rust | Dry before stacking |
| Using bleach | Damages protective layer | Mild soap only |
Rust Prevention Terms to Know
- prevent rust on stainless steel
- chafing dish cleaning guide
- remove hard water scale
- equipment storage tips
- 304 stainless steel chafing dish
The Bottom Line
Rust spots on stainless steel buffet equipment are annoying but easy to prevent. The #1 rule: dry within 5 minutes of washing. No standing water, no steel wool, no bleach. Do that, and your equipment will stay shiny for 10 years.
Looking for Rust-Resistant Buffet Equipment?
BAVA manufactures 304 stainless steel buffet equipment with excellent corrosion resistance. All products CE/FDA certified, OEM/ODM available.

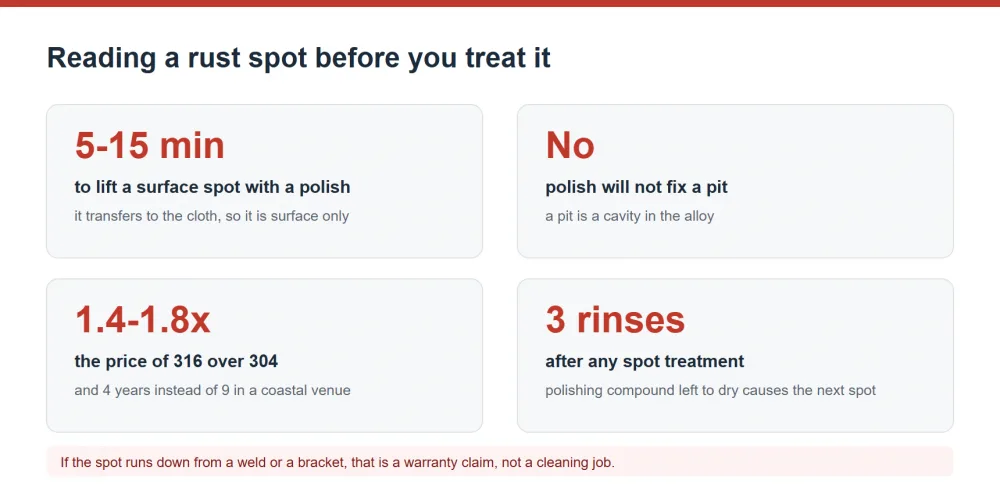

Reading the spot before you treat it
The decision that matters is whether the spot is on the surface or in the metal, and you can tell in under a minute. A surface spot transfers to a cloth and comes off with a polish. A pit is a small cavity in the alloy, it does not wipe off, and it is a permanent defect. Treating a pit with polish wastes an hour and produces a slightly shinier hole. The table below covers the four causes and what each one leaves behind.

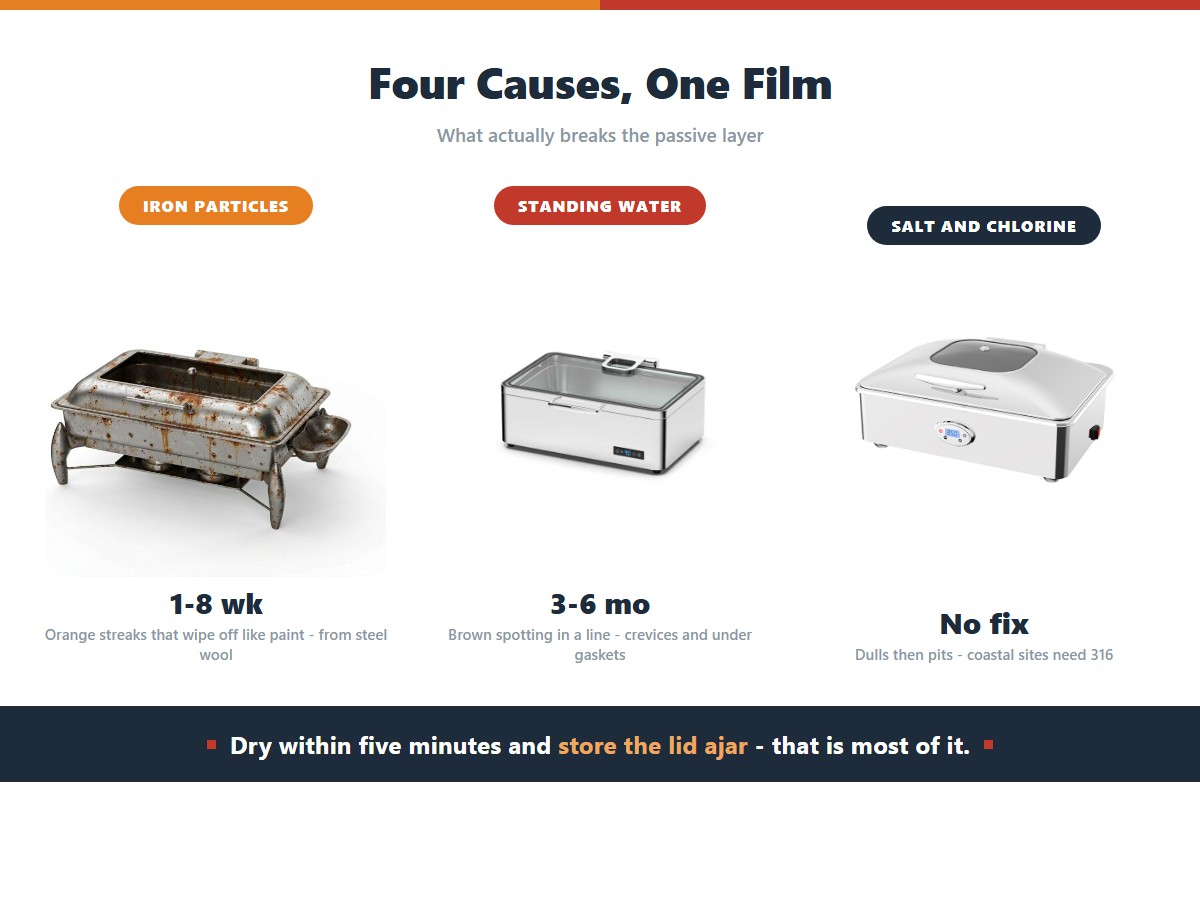

| Cause | What it looks like | Where it appears | Time to appear | Removable by polish | Prevention |
| Iron contamination from a steel wool pad or a carbon steel wire | Orange-brown streaks that wipe off like paint | Scratch lines and edges | 1 to 8 weeks | Yes, easily | Nylon pads only, never steel wool on stainless |
| Standing water in a crevice or under a gasket | Brown spotting in a line or a ring | Creases, base, under seals | 3 to 6 months | Yes, if shallow | Dry fully, store open, do not stack wet |
| Salt and chlorine | Uniform dull grey, then pitting | Whole surface, worst near the base | Weeks to 3 months | No, it becomes pitting | Rinse twice, keep salt off the steel, coastal sites need 316 |
| Scratches left wet | Spotting that follows the scratch lines | Along the scratch | 2 to 8 weeks | Yes, if the scratch is shallow | Sand the scratch, then polish, and dry properly |
| Failed weld or wrong grade steel in the body | Rust running down from a seam or a spot on a bracket | Seams, welds, dissimilar metal fixings | 3 to 18 months | No | Not a maintenance issue, it is a warranty claim |
Grades, and where the difference actually shows
Grade selection is the decision that prevents this from being a monthly chore. 304 stainless has 18 percent chromium and 8 percent nickel and performs well in a dry indoor kitchen. 316 adds 2 percent molybdenum and its resistance to chloride roughly doubles, which is why it is specified in coastal hotels, in salted food service, in pharmaceutical production and in any poolside or beachfront venue. The table below compares the three grades you will actually be offered.
| Property | 201 | 304 | 316 |
| Chromium | 16 to 18 percent | 18 to 20 percent | 16 to 20 percent |
| Nickel | 3.5 to 5.5 percent | 8 to 10.5 percent | 10 to 14 percent |
| Molybdenum | None | None | 2 to 3 percent |
| Relative cost | Lowest, about 60 to 75 percent of 304 | Baseline | About 1.4 to 1.8 times 304 |
| Resistance to ordinary atmosphere | Good | Very good | Very good |
| Resistance to salt and chloride | Poor, spots quickly | Moderate, spots in coastal or salted service | Good, the standard for coastal kitchens |
| Resistance to strong acids | Poor | Good | Very good |
| Magnetic | Yes | No | No |
| Best use on a buffet | Dry, low-traffic, non-food areas | Standard dry indoor kitchens | Coastal, salted food, high humidity, pharmaceutical |
One warning about 201. It is magnetic, which tells you nothing, but it is also lower in nickel and molybdenum, so it spots sooner and it does not self-repair as readily once the passive film is broken. It is a legitimate material for a dry storeroom shelf or a splashback. It is a poor choice for a water pan, a fuel holder or anything that stays wet, and the price difference is small enough that upgrading to 304 is usually the correct decision.
Frequently Asked Questions
Can I remove rust spots from a stainless steel buffet?
Yes, if they are surface deposits. Use a stainless steel polish on a soft cloth, work in the direction of the grain, and the spotting will come off in 5 to 15 minutes. A nylon scouring pad is more effective on a crease or a weld, and a diluted citric or phosphoric acid solution helps on a surface with a broader dull area. What you cannot do is polish away pitting, because a pit is a cavity in the metal. After any spot treatment, rinse with clean water and dry, because leaving a polishing compound to dry on the surface is itself a cause of the next spot.
Why does only one piece of my equipment rust?
Usually one of four reasons. It is a different grade from the rest, and 201 next to 304 will show it first. It was washed with steel wool or a carbon steel wire brush, which deposits free iron that rusts. It stays wet in service, for example a water pan that is stacked away without drying. Or it is exposed to salt or chlorine that the rest of the line is not, for example an outdoor station near a coastal road or a unit exposed to a swimming pool area. Check the grade first, because a supplier substitution is the most common and the most fixable cause.
Does stainless steel need a special cleaner?
It needs a cleaner that is neutral and non-abrasive, which is less special than it sounds. Warm water and a mild dish detergent is sufficient for routine cleaning of stainless, and a stainless polish is for the occasional stain. What you must avoid is anything with chlorine, anything strongly alkaline, anything acidic enough to etch, and any abrasive pad. The commonest household mistake is using a bleach-based cleaner on stainless, which is a fast way to produce a permanently dull surface and eventually pitting.
Is 316 stainless worth the extra cost for a hotel buffet?
It depends on the water and the location, and the decision is straightforward. If you are inland, in a dry climate, with a treated water supply and no salt in the food, 304 will look identical for many years and 316 is money spent on nothing visible. If you are coastal, if you cook with salt or brine, if the units sit in a humid unventilated room, or if the venue is within a few kilometres of the sea, specify 316 and the difference in service life is measured in years rather than months. The premium is typically 1.4 to 1.8 times the price of the same unit in 304, and a chafing dish that is going to be replaced in four years instead of nine is worth far more than the premium.
Is a rust spot a food safety issue?
On a non-food-contact surface it is an appearance and durability issue, and it is the reason a customer photographs your buffet and complains. On a food contact surface it is a hygiene issue as well, because the rough pitted surface harbours biofilm that a smooth stainless surface does not, and it cannot be cleaned to a standard. The correct action for a rusted food contact surface is to stop using it and replace the part, not to polish it and put it back. If a rust spot appears on a welded seam or runs down from a bracket, treat it as a warranty matter and claim it, because that is a manufacturing fault and not a maintenance failure.
Related reading
- Rust Spots on Stainless Steel Buffet Equipment: Causes and Removal
- 304 vs 201 Stainless Steel: Which Alloy for Buffet Equipment?
- Stainless Steel Grades Explained: 201 vs 304 vs 316 for Buffets
- 201 vs 304 Stainless Steel: Chafer Durability Test
- Why Your Chafing Dish Has Hot Spots (And How to Fix It)
- Chafing Dish Noise Ruining Your Event? Silent Stainless Steel Solution
